Source system data to warehouse via CDC.

-

Introduction

I have been working on a data warehouse project with a difference. The difference is that the ETL is not doing the classic extract of source system data, instead the source system is going to send its data to the data warehouse by using change data capture (CDC). The decision for using CDC was as follows:
  • To have the ETL only process the data that has changed within the source system between each run of the ETL. This would help the ETL perform as it would only have to process the change data and not work out what the changes were first.
  • Not to have the ETL processes impact the central source system database. The CDC would be responsible for delivering the changes of the source system to another database server. Then the ETL could be run at any time within the day and wouldn't be responsible for blocking the transactional source system. As there was plans to have the ETL run at the end of the day for two time zones e.g. US and UK.
I would like to share some of the experiences, decisions and challenges that we face while trying to build a data warehouse using CDC. The first decision, which I will put into another post, was which CDC software to use. As a consequence of using CDC we faced a challenge on how to extract data from source systems where CDC couldn't be applied, One such system was Master Data Services (MDS) this was due to how the data is stored within its database. As this would mean the transforms for this source system would have to use a different approach to where CDC was used. What we decided to do was mocked CDC through use of SSIS and then stored the delta changes that we found through our dataflow process. The reason for choosing this approach was so that all the transforms had a consistent approach.

Development

Early into development we discovered that we had to define what was meant by processing intraday changes. Did this mean every row which was captured by CDC within that Day? In other words, that every change which was captured should create a history change within the data warehouse leaving the last change as current. Or did this mean capture events changes within the day? For example scanned the changes for that day and find the flags for the records that are required. For us this meant capture event changes. Importance of understanding the meaning of intraday changes had an impact on how we approached coding the transform procedures.

Another challenge that we faced was how to deal with transforms which require data from two tables. The reason why this was a challenge is because of the following scenario: An entity within the warehouse has a business rule which requires data from 2 tables from the source system before it can be evaluated. However within the source system data has been changed and captured for one table only. For example: business rule order status requires data from the OrderHeader table and the OrderLine table.  As illustrated below.

BusinessRules

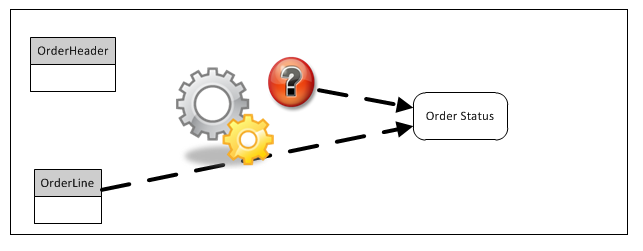

The source system updates the OrderLine table and a CDC captures the changes and sends them to the ETL. Then the ETL process runs with only the OrderLine changes tries to evaluate the order status business rule but how to evaluate this when OrderHeader data has not been supplied? As illustrated below.

MissingBusinessRules

There are many ways this can be resolved, here are some examples:
  • Change the application process to create updates to the required linked tables. This might not solve the problem as the CDC software may not have committed all of the changes before the ETL process starts running, unless the CDC is part of the ETL.  Also this may cause performance problems for the application team.
  • To design the data warehouse scheme and business rules so that the transforms don't require joins between tables to create a data warehouse. This I will highlight may not be practical as it could mean it basically becomes a copy of source systems schemas which would give you no value for reporting and analysing.
  • To get transform to read the missing data from the data warehouse if CDC hasn’t passed on the data. This was a good option to consider however there are few considerations to be aware of:
    • Could have performance issues with the transform for some of the following reason: Using left outer joins on warehouse tables and depending on the warehouse schema could require a large number of tables; have use of function calls to IsNull or Coalesce; The size of the tables data warehouse could make query tuning very difficult.
    • Adding complexity to untranslate business rules or transforms if source system data isn’t being natively stored
    • Harder to read and maintain as the transform isn’t just transforming source data
    • The data warehouse could become even wide or larger if the source systems native data is stored within the warehouse to help the transform.  This will have an impact for querying and processing performance; also add overhead cost for storage.
We solve the problem by extending one of our client's requirements. The requirement was: keep a copy of the source system data changes for each day for a further 30 days. To meet this we configured the CDC to send all the changes to an archive database. Then have the ETL process to extract the day changes from the archive database. Rather than have CDC drop the changes to a landing database and then have the ETL copy the data again to the archive database as well as transform the data. The extension of the requirement was to keep all changes of the latest version of each primary key within the archive database. This then allowed us to write a post-extract process to extract any missing data required for any of the transforms where data wasn't present. This then allowed us to write the transforms in a manner that always assumed that all data was in the same location.

Testing

We found that we had to change the way that we prepared to test our ETL process by using datasets. Normally we would create some datasets which would mirror the source system in a particular state for testing certain scenarios for transforms and business rules. However this time we only needed to create change records for testing but the problem was how to ensure that the change records were fed in a controlled manner to ensure consistent mirrored states of source system and valid transitions were maintained. We resolved this problem by investing time to create a test harness solution. Which mimic our CDC tool of choice by inserting the test data into the archive database and then running the ETL process. One thing I would recommend is that you trial your CDC tool over your source systems to see what data changes will be actually captured. This will help to create valid test data for testing transforms and business rules within your ETL process
